Specifications
Typical values from the datasheet; accuracy applies under the datasheet's reference conditions. Where a value depends on the application it is specified per project and fixed in the order confirmation.
| principle | electrochemical · thermocatalytic · infrared · semiconductor |
| gases | toxic · combustible (%LEL) · O₂ · CO₂ · HC · refrigerants |

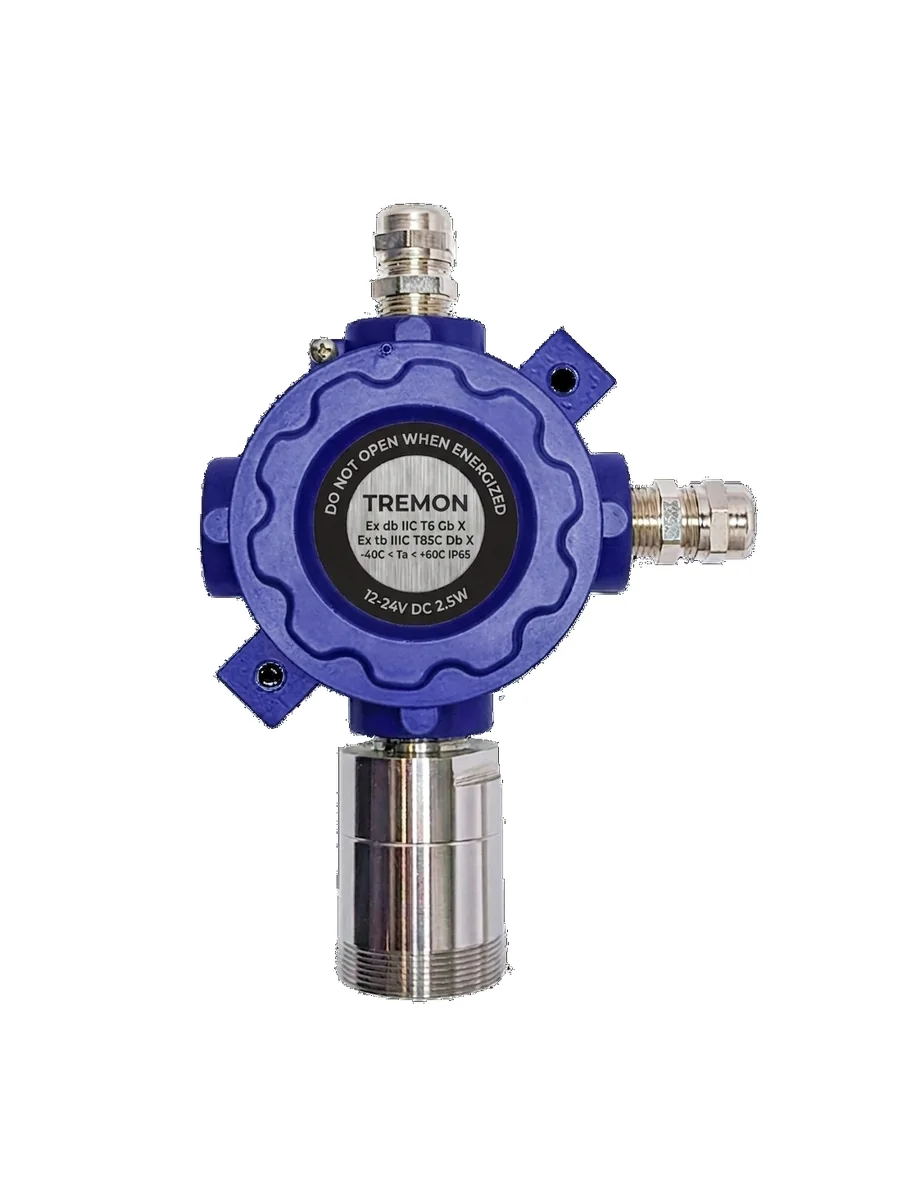

| variants | TRM-EX-E · TRM-EX-CT · TRM-EX-IR · TRM-EX-SMC |
| output | 4–20 mA · RS-485 Modbus RTU · relay opt. |
| Ex marking | Ex db IIC T6 Gb X · Ex tb IIIC T85°C Db X |
| build | IP65 · SS316 sensor · −40…+60 °C · 12–24 V DC |
Downloads
Open links — no form.
| Document | File | Type |
|---|---|---|
| Datasheet | tremon-trmex-datasheet.pdf | PDF · 2 MB |
| Manual | tremon-trmex-manual.pdf | PDF · 3 MB |
| Calibration certificate (sample) | on request — issued per unit | |
| Modbus register map | on request |
Applications and the rule behind each
- Methane LDAR and continuous monitoring on gas installations (Reg. 2024/1787)
- %LEL detection of LPG / hydrocarbons in ATEX zones (EN 60079-29-1)
- Toxic-gas workplace monitoring (CO, NH₃, SO₂) at the OEL
- Hydrogen and battery rooms (electrochemical / catalytic heads)
Gases
Each gas has a reference page with limits, IR band and monitoring practice.
Certificates and compliance
Status words as on the datasheet: certified · pending · application dependent.
| Ex db IIC T6 Gb X · Ex tb IIIC T85°C Db X | certified |
| IP65 | certified |
| EN 60079-29-1 performance | per gas head, see datasheet |
How you get it
1
gas · zone · output
2
quote & Ex documentation
3
installation by qualified personnel
4
calibration interval per gas head
FAQ
Which head for methane?
TRM-EX-IR (infrared) for CH₄ 0–100 %LEL or vol% without oxygen dependence; TRM-EX-CT (catalytic) where hydrogen must also be covered.
Ex documentation?
The Ex certificate and installation instructions ship with the unit; installation by qualified personnel per EN 60079-14.
Calibration interval?
Per gas head — see the datasheet; typically 6–12 months for electrochemical, longer for IR.
Get a quote
Tell us what you measure — just tap
Three taps and an email. An engineer replies within 24 h with feasibility and a price indication.
